High Voltage Transformers

Also see our High-Voltage Supplies Page

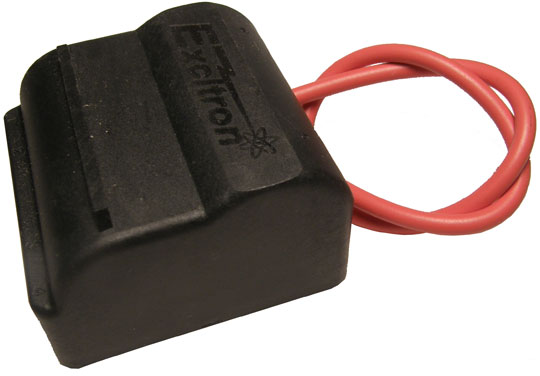

High Voltage Flyback Transformer


High voltage Power Supply Flyback Transformer

Specifications
  • Operating Power: 40W
  • Input Voltage (Peak-to-Peak): 20V to 80V
  • Output Voltage (Peak-to-Peak): 20KV Max.
  • I/O Isolation Voltage: 20KV
  • Frequency: 15KHz to 45KHz
  • Operating Surface Temperature: 0°C to +80°C
 Applications
  • Ozone Generator (1g to 3.5g /hr/O2)
  • Ion Generator
  • Electrostatic Precipitator
  • Electronic Gas Igniter
  • Electronic Neon Tube Power Supply (30ft)

HVT-01 More Information

Circuit Diagrams

See Dimensions

HVT-01B - $29.95
High Voltage FlybackTransformer


High Voltage Auto Transformer


Small High voltage auto transformer
Height 2-3/4" Diameter 1-1/4"

HVT-09 - $29.95
Small High Voltage Transformer

ACA-12VDC - $23.95
12VDC - 1500 mA Power Supply

Choose Product:


High Voltage Mini Step-up Transformer

Mini Step-up transformer











Data Sheet (PDF)

HVT-03 - $8.00
Mini Step-up Transformer



High Voltage Mini Step-up Transformer

HVT-06 Mini Step-up transformer





Data Sheet (PDF)


HVT-06 - $8.00
Mini Step-up Transformer



High Voltage Power Supply HVPS-06

High Voltage Power Supply

Features

  • Sine wave switching power
  • Meet EMI (Electromagnetic Interference) regulations
  • Short-circuit, no-load protection
  • Adjustable and constant output voltage
  • Utilize SMD, compact design, small size, high reliability
  • Epoxy encapsulated, with highest safety and stability
  • Input Voltage: 10-18VDC
  • Output Voltage: 5KV-8-KV

 Applications

  • Generate ionic-wind and a small amount of ozone
  • Utilize negative ion to reduce particulates in the air
  • Utilize ozone to clean and purify air
  • Used in vehicleor indoor to sterilize and eliminate smoke and dust mites
  • Small type electrostatic precipitator used in vehicle

Spec Sheet (PDF 91 Kb)

HVPS-06 - $48.95
High Voltage Power Supply

ACA-12VDC-500mA - $9.95
PN# ACA-12VDC-MWW

Choose Product:

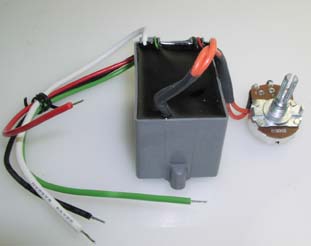

Adjustable Negative High Voltage Power Supply

Adjustable Negative High Voltage Power Supply

Features

  • Sine wave switching power
  • Meet EMI (Electromagnetic Interference) regulations
  • Short-circuit, no-load protection
  • Adjustable and constant output voltage
  • Utilize SMD, compact design, small size, high reliability
  • Epoxy encapsulated, with highest safety and stability
  • Input Voltage: 12VDC
  • Output Voltage: 200 - 6,000VDC
  • Output Current: 40 - 230 mA

 Applications

  • Generate ionic-wind and a small amount of ozone
  • Utilize negative ion to reduce particulates in the air
  • Utilize ozone to clean and purify air
  • Used in vehicle or indoor to sterilize and eliminate smoke and dust mites
  • Small type electrostatic precipitator used in vehicle

HVPS-07 - $74.95
Adjustable Negative High Voltage Power Supply

ACA-12VDC-MWW - $9.95
AC Adapter

Choose Product:
