Two-Directional Bi-Flex Sensors™

Sign Language Teaching Tool Project

Project courtesy of project members:
Isaac Aguilar - Hardware, Software
Tri Quach - Hardware, Software
Marcos Vasquez - Hardware
School: Jacobs School of Engineering, University of California at San Diego (UCSD)

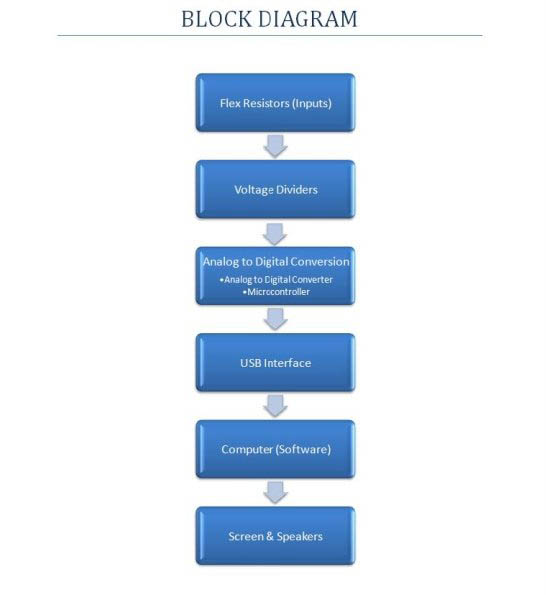

Block Diagram of the Fast Sign Language Interactive Learning Glove

The following diagram illustrates how the process of interpreting the users gesture's into letters in sign language works.

Block Diagram of the Fast Sign Language Interactive Learning Glove

The picture above shows a partial parts List for the Sign Language teaching tool.

Block Diagram of the Fast Sign Language Interactive Learning Glove

Finalized prototype. The use of breadboard was much more simple than that of an actual PCB board.

Also, we ended up using the breadboard since the MAE lab didn't have a drill bit small enough to drill 1/32th of a inch.
